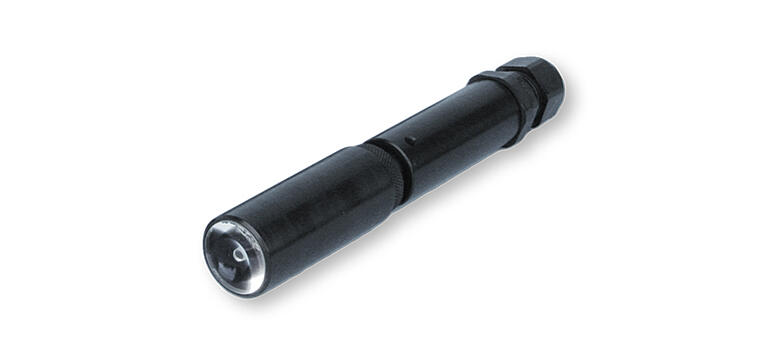

Gladius Beam FDR

For reflectance measurements in applications that require a distance between the probe and the target of interest. The FDR can be used with virtually any type of spectrometer in the visible or near-infrared range and can measure solid or opaque media at a distance of several centimeters without contact. The unique design of the probe provides the ability to vary the distance and diameter of the measurement spot while effectively minimizing stray light.


Potential Areas of Application:

  • Non-invasive determination of residual moisture


Special Features

  • Optimized for sensitivity and flexibility
  • Sample distance of 25 mm to 100mm
  • Low scattered light
  • Bifurcated 80-fiber bundle

Gladius Beam - Standard Configuration

To find your ideal configuration for this product, please follow the "adjust configuration" button at the end of this table

Model series Gladius Beam FDR
Measuring principle REFLECTION
Outer Diameter 30 mm | 1.25 inch
Diameter Probe Barrel 31.75 mm (1.25 inch)
Optical Path / Focal Length Variable
Probe distance adjustable from 25 to 100 mm; Diameter illumination area: 5 mm at 50 mm distance
Optical Material SF-5 Glass
Probe Body Material Aluminium
Sealing Technology Epoxy Glued
Spectral Range NIR Fiber Bundle
Wavelengths 400 nm - 2200 nm
Optical Connection 2 m Glass Fiber with Stainless Steel Spiral Hose and 2x F-SMA Connector
Fiber Optic Technology Standard fiber optic
2x 39 fiber bundle, active area 1.7 mm diameter
Process Connection Without Flange
Maximum Pressure Atmospheric Pressure
Maximum Immersion Depth
Max. Immersion depth contactless measurement
Additional Functions None
ATEX Suitability
Temperature 5 °C to 100 °C
Delivery Immersion Probe, Manual, Customer drawing, Protocol of transmission test, Transport case
Expected delivery time on request
Article number PB7VFAIRGASZ000N
Price per unit on request
Quantity 1

More informationLess information

Are you interested in this product or do you have any questions - please contact us. For more probes, please refer to our online configurator.
