Compact and robust measurement cell

For process reliability during measurements under harsh conditions

Excalibur HD Flange Measurement Cell

Compact Measurement Cell - optionally with Internationally Recognized CE-Certification in Accordance with the Pressure Equipment Directive (PED) For Industrial Process Analytical Technology (PAT)

Excalibur HD Flange

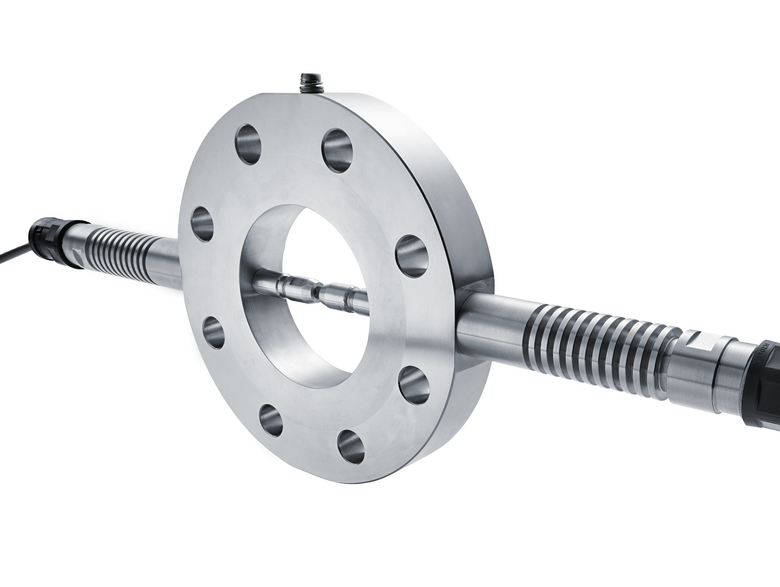

This optical flange measurement cell from Hellma consists of two optics which, combined with a central part, result in a flow cell. This compact measurement cell can be safely integrated into an existing system with little effort. The materials used are resistant to organic solvents and many acids and alkalis. Instead of elastomers, the cell uses patented metal seals with a high chemical and temperature stability.



Robustness and precision are combined in one product. This guarantees a long service life and best results. Measurement cells of this category are particularly suitable for transmission measurements under harsh process conditions.

'

Excalibur HD Flange Measurement Cell - For Industrial Process Analytical Technology (PAT)

Special product advantages

Very robust design

  • Optimal heat protection of optics and light guides
  • Operation in ATEX-zones 1, 2, 21, 22 possible
  • Maximum safety for employees and plant - no accidental opening possible due to the firmly welded design
  • CE certification according to DGRL 2014/68/EU can be carried out as an option



Simple installation

  • Very compact design
  • Space-saving installation in pipe systems
  • Flanges up to DN100 possible – well suited for large media flows



High precision and simple method transfer

  • Extremly precise path length accuracy through fixed set-up without spacers
  • No accidental adjustments of the path length possible
  • Very high measurement accuracy simplifies method development and method transfer

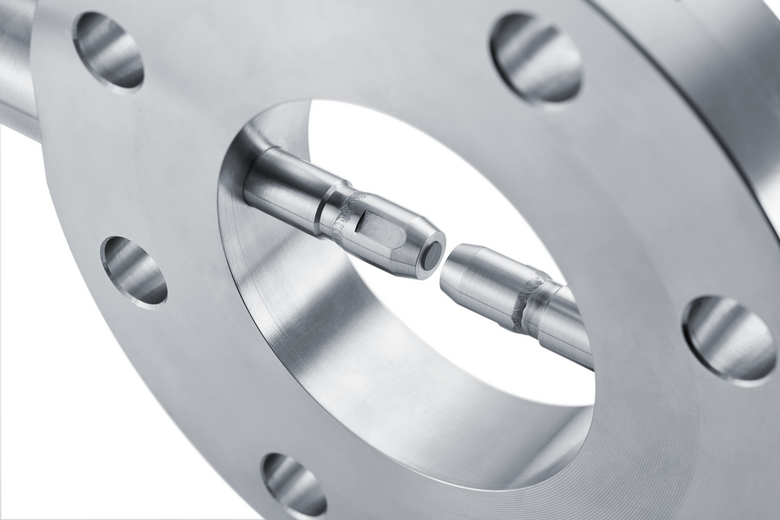

Measuring gap of the Excalibur HD Flange

High-quality measurement optics

  • Very high transmission in Hellma quality
  • Firmly welded sapphire optics instead of screwed optics
  • No wear parts, maintenance-free, very long service life

Typical Applications

  • Identification of educts, monitoring the quality of raw materials
  • Controlling the mixing ratio and the homogenity of major constituents in mixtures
  • Monitoring chemical reactions in tube reactors
  • Controlling chemical reactions in the bypass or at the exit of the reactor
  • Spectroscopic online measurement in oil production

Technical Data

Model Series Excalibur HD Flange
Measurement principle Transmission
Flange Thickness 45 mm, with cooling fins
Optical Path 1 mm / 2 mm / 5 mm / 10 mm
Pathlength Tolerance ± 0,1 mm
Optical Material Sapphire
Flange Material Stainless Steel 1.4435/1.4404 (316L) or Hastelloy C-22 on demand
Sealing Technology Gold coated High-Nickel Alloy C-ring
Spectral Range NIR (400 nm - 2300 nm) or UV/Vis (280 nm - 1100 nm)
Optical Connection F-SMA sockets and ATEX PMA housing (NW 17) or 2 m fiber optical calbes with stainless steel sleeve
Connection Diameter of fiber core 600 µm and numerical aperture 0.22
Process Connection Matching EN 1092-1/05/A DN 25 to 100 or ASME 1,5 to 2 Zoll
Inner Diameter Selectable (depending on the selected flange)
Light Guide Technology Standard glass fiber or high temperature glass fiber
Temperature Restrictions T max: optical connection 150 °C (without external glass fiber) / Copex PMA 130 °C (85 °C for ATEX)
Temperature 5°C to 300°C
Pressure -1 bar to 40 bar (Class 300, overpressure at RT, 29,2 bar at 200 °C, 26,1 bar at 300 °C, 24,2 bar at 400°C), depending on the selected flange
Scope of Delivery Optical measurement cell, manual, customer information drawing, pressure test certificate, transmission test report, transport packaging optional: CE certificate (flange larger DN25 / ASME 1")




Excalibur HD Flange (Datenblatt_EN)

Download


Optical Probes / Measuring Cells (Brochure EN)

Download

Probe and Flow Cell Configurator

Hellma offers the largest selection of products worldwide and the highest level of expertise to support your online measurements from UV to IR. Find the right measuring interface quickly and easily or configure your individual immersion probe or measurement cell.

Product Configuration »

You are interested in this product or have any questions?
Please do not hesitate to contact us!


E-Mail: sales.analytics@hellma.com
Telephone:  +49 7631 182 10 10
