Niacin liquid filter (213 - 261 nm)

for checking the photometric accuracy in the UV range

Niacin (nicotinic acid) in hydrochloric acid is highly suitable for checking the photometric accuracy of spectrometers in the UV range. The Niacin spectrum shows a relatively broad maximum at the wavelengths 213 nm and 261 nm.

The Niacin filter solutions are filled and immediately fused under controlled conditions to become permanently airtight.

Application

The Niacin liquid filters are used for checking the photometric accuracy (absorbance) and the photometric linearity in the UV-range, according to the requirements of the European Pharmacopoeia and the United States Pharmacopeia (USP 857).

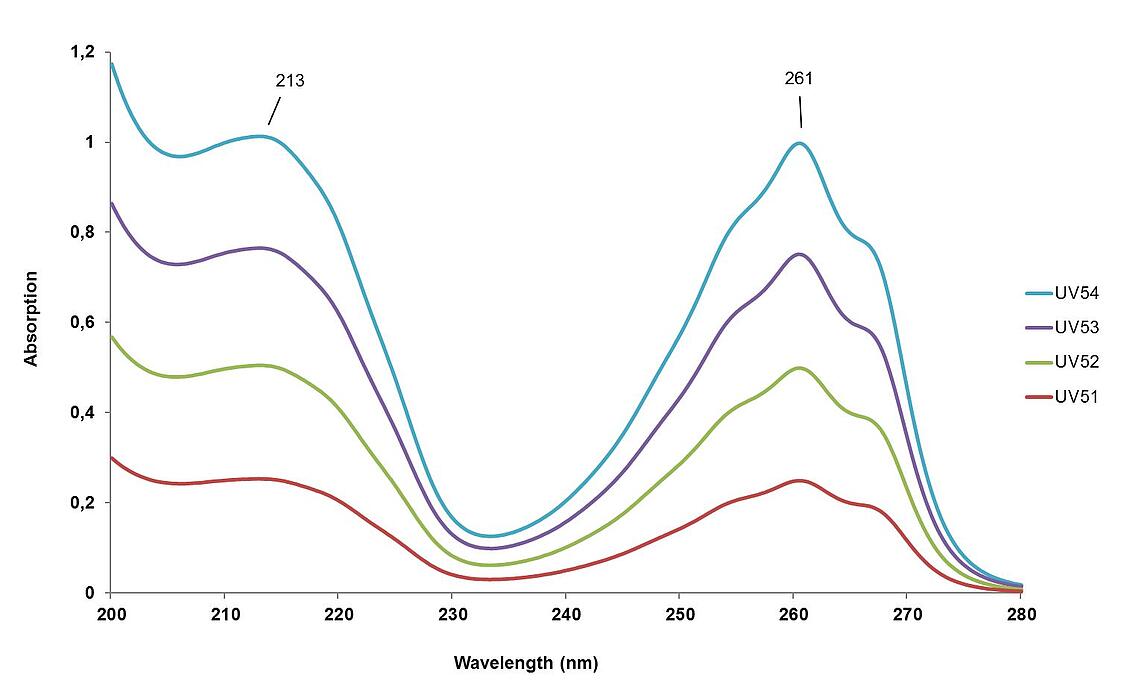

Typical scanlines of Niacin liquid filters, measured at a slit width of 1 nm.



Following Niacin Filter Sets und Single Filters are available:

Type Article-No. Content
UV506 667506 6 mg/L Niacin in HCl (ca. 0.25 Abs)
UV512 667512 12 mg/L Niacin in HCl (ca. 0.5 Abs)
UV518 667518 18 mg/L Niacin in HCl (ca. 0.75 Abs)
UV524 667524 24 mg/L Niacin in HCl (ca. 1.0 Abs)
UV536 667536 36 mg/L Niacin in HCl (ca. 1.5 Abs)
UV548 667548 48 mg/L Niacin in HCl (ca. 2.0 Abs)
UV599 667599 Hydrochloric acid (HCl), reference filter
UV350 667350 Filter-Set includes 6, 12, 18, 24 mg/L Niacin and reference filter
S501 667S501 Filter-Set includes 6, 12, 24 mg/L Niacin and reference filter
Standard Measurement Wavelengths: 213 nm and 261 nm
Slit width: 1 nm; with DAkkS calibration certification
Possible Measurements Wavelength: fix
Slit width: 1 and 2 nm

Note

The individually measured absorbance values are free from any systematic errors. The measured data of the reference filter UV599 (hydrochloric acid measured against air) appears separately on the calibration certificate.

To check photometric linearity, perform the measurement with Niacin filters of different concentrations. List the measured absorbance values for each filter and each wavelength in a diagram and calculate the correlation coefficient.

To help you with the determination of the photometric linearity, we have created an excel file (tool) for the evaluation of your measurement values.

Control of photometric linearity (Tool EN)

Download

Thank you very much for your interest in our download of "Control of photometric linearity (Tool EN)". Please fill in the form below and we will send you the requested link to the given e-mail address.


Note: Your data will of course be treated confidentially and will not be shared with third parties. You can revoke your consent at any time by clicking on the end of each e-mail.
Required Field

Optical Reference Materials (Brochure & User Manual EN)

Download


Liquid-based, optical reference material UV506, 512, 518, 524, 530, 536, 542, 548 (Safety Information EN)

Download
