Excalibur Lab

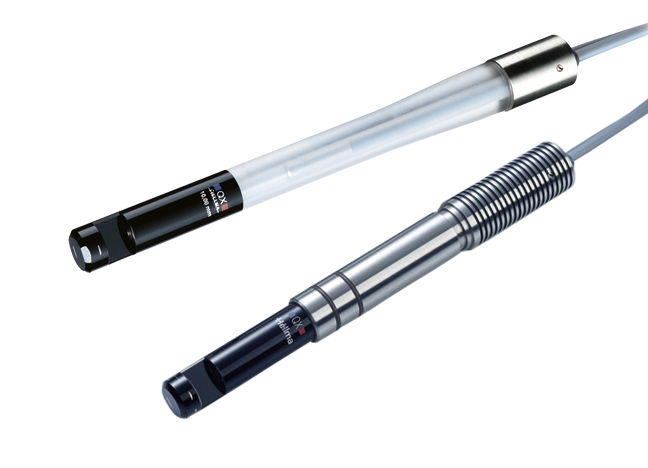

Ideally suited for laboratory transmission measurements where nominal pressures and temperatures do not dictate the need for specialized o-ring seals. The optical material of all laboratory probes is quartz glass. The Hellma Excalibur Lab probe is a classic transmission probe for use in laboratories or for online measurements.



Special Features

  • Highest precision due to the monolithic quartz measuring head
  • Optical protection of the measuring head while minimizing stray light due to removable protective sleeve
  • Use of FFPM (perfluoroelastomer) O-rings with high chemical resistance

Technical Data

Model Excalibur Lab
Measurement Principle Transmission
Outer Diameter 15 mm (Probe Head 15 mm; Probe Shaft 18 mm; Protective Sleeve 20 mm
Optical Path 1, 2, 5, 10 mm or 20 mm, optical tolerance ± 0,1 mm
Optical Material Quartz Glass
Sealing Technology Kalrez 4079
In the sealed version, the measuring head Kalrez is sealed, the protective sleeve is fixed with Viton (no sealing function).
Probe Body Material Probe shaft and protective sleeve made of stainless steel (316 L)
Spectral Range NIR or UV/Vis
Wavelengths UV/Vis: 210 - 1100 nm
NIR 400 - 2300 nm
Optical Connection Glass Fiber with F-SMA Connector / Glass Fiber with Collimator (Ø 5mm)
Light Guides 2 m / 3 m / 5 m / 8 m fibers or no fibers
Process Connection No Flange
Probe Barrel Not suitable for Swagelok
Maximum Pressure 40 bar (Class 300), overpressure at RT, 31 bar at 200 °C, 27 bar at 300 °C, 25 bar at 400°C
Maximum Immersion Depth Without flange: 100 mm-640 mm (Ø 12 and 20 mm), 940 mm (Ø 25 mm), with flange 600mm (Ø 12 and 20 mm), 900 mm (Ø 25 mm)
Minimum Immersion Depth 30 mm + optical pathlength
Probe Barrel Length 163 mm + pathlength
Addtiional Functions None
Temperature 5 °C to 150 °C
Pressure Range 0 bar to 6 bar
Scope of Delivery Optical immersion probe, manual, pressure test certificate, transmission test protocol, transport packaging
